Machining New Tools for the Workshop

Joe has a series of pulling/pushing tools for /2 that share this top piece.  One of my goals has been to copy Joe's tools, so I thought I'd start with the top piece.


I began with a blank of tool steel.
First I faced it and here I am boring a center hole.

After boring it out to a larger size, I cut some threads at 16 tpi
Looking good!


I polished up the threads with a tap by hand.
Then I milled slots, holes, and beveled edges.
Calculating the location of cuts for the DRO.

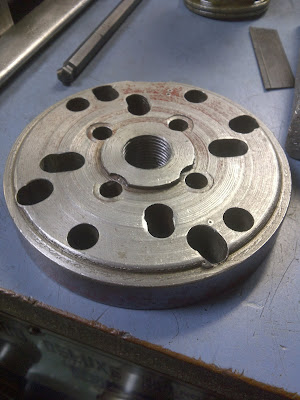

The finished tool..
I'm hoping to get more than a lifetime of use out of these.
